Standard Feature

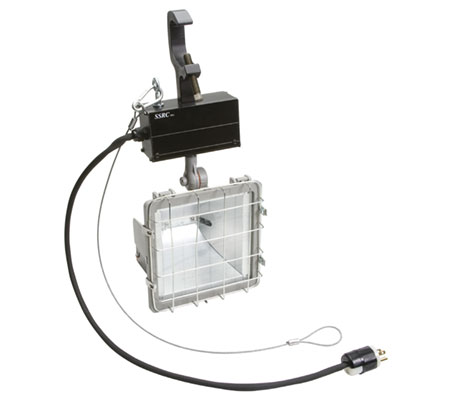

- SSRC’s Stage Work Light Fixture is a versatile addition to any performance space in need of affordable work and rehearsal lighting.
- SSRC’s work light has a die cast aluminum housing with a high temperature lens enclosing the lamp.
- The fixture produces a wide uniform beam for general illumination of stage area. Optional features include wire lens guard and top and side visors.
- QL-505 fixture gray housing with high tem perature lens
- 36” pigtail with your choice of plug installed:
- 2P&G stage pin plug
- L520 twist lock plug
- 520 parallel blade plug
- QL505-Halogen T-3, 500W, 120V lamp
- Mounting c-clamp
- Safety cable and safety cable eye bolt
Optional Features
- Custom colors.
- LED indicator lights.
- Custom circuit identification.
- DMX input/output.
- Available in 16 gauge steel.
Ordering Product
- OUTLET TYPE
- 2PGFL
- 2PGPT
- L520R
- L520PT
- 520R
- 520PT
- 602PGFL
- 602PGPT
- DESCRIPTION
- 20 Amp. Stage pin receptacle
- 20 Amp. Stage pin 18" pigtail
- 20 Amp. Twist lock receptacle
- 20 Amp. Twist lock 18" pigtail
- 20 Amp. Parallel blade receptacle
- 20 Amp. Parallel blade 18" pigtail
- 60 Amp. Stage pin receptacle
- 60 Amp. Stage pin 18" pigtail
PM–XX/XX–XXX
Outlet box type
Circuit quantity
Outlet quantity (if different)
Outlet type
Sample: PM-4-2PGFL
Pipe Mounted Outlet Box with 4 - 20 amp circuits and 4 stage pin receptacles.
Please specify circuit numbering and above or below pipe mounting when ordering. Consult the factory for custom types and sizes.
