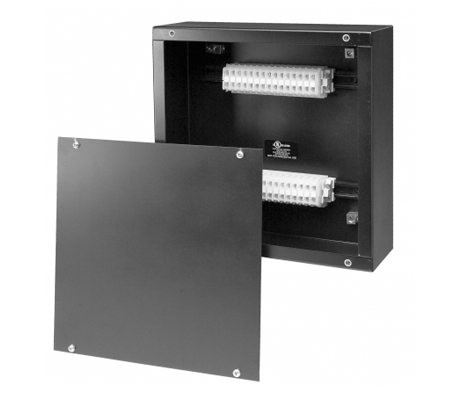

Standard Feature
- 16 gauge cold rolled steel, NEMA 1 screw cover enclosure.
- Molded barrier terminal blocks for #8 through #18 AWG with provision for circuit numbering.
- Ground lugs installed.
- Black matte finish.
- UL listed and labeled.
- This assembly shall consist of a 16 gauge, cold rolled steel back box and cover plate.
- The box may have 20, 60, or 100 Amp, or DMX molded barrier terminal blocks.
- The box shall have ground lugs installed at the factory.
- Finish shall be black matte enamel.
- The entire assembly shall be listed and labeled by Underwriters Laboratories.
Optional Features
- 60 Amp, 100 Amp, or DMX terminals.
- Custom colors.
- Hinged covers.
- Galvanized enclosures.
- Custom mounting tabs.
Ordering Product
| Model # | Number of 20 Amp terminals | Number Of ground lungs | Dimension Height | Width | Depth |
|---|---|---|---|---|---|
| GB-6 | 12 | 1 | 10" | 10" | 4" |
| GB-8 | 16 | 1 | 10" | 10" | 4" |
| GB-10 | 20 | 1 | 10" | 10" | 4" |
| GB-12 | 24 | 1 | 10" | 10" | 4" |
| GB-14 | 28 | 1 | 10" | 10" | 4" |
| GB-16 | 32 | 1 | 12" | 12" | 4" |
| GB-18 | 36 | 2 | 12" | 12" | 4" |
| GB-20 | 40 | 0 | 12" | 12" | 4" |
| GB-22 | 44 | 2 | 12" | 12" | 4" |
| GB-24 | 48 | 2 | 12" | 12" | 4" |
| GB-26 | 52 | 2 | 16" | 10" | 4" |
| GB-28 | 56 | 2 | 16" | 10" | 4" |
| GB-30 | 60 | 4 | 16" | 10" | 4" |
| GB-32 | 64 | 4 | 16" | 10" | 4" |
| GB-34 | 68 | 4 | 16" | 10" | 4" |
| GB-36 | 72 | 4 | 20" | 10" | 4" |
| GB-38 | 76 | 4 | 20" | 10" | 4" |
| GB-40 | 80 | 4 | 20" | 10" | 4" |
| GB-50 | 100 | 6 | 24" | 24" | 4" |
| GB-60 | 120 | 8 | 24" | 24" | 4" |
